END MILLS
You are hear : Home > Product Center > END MILLS
HSS / HSS-Co / HSS-Co 8% / HM TCT

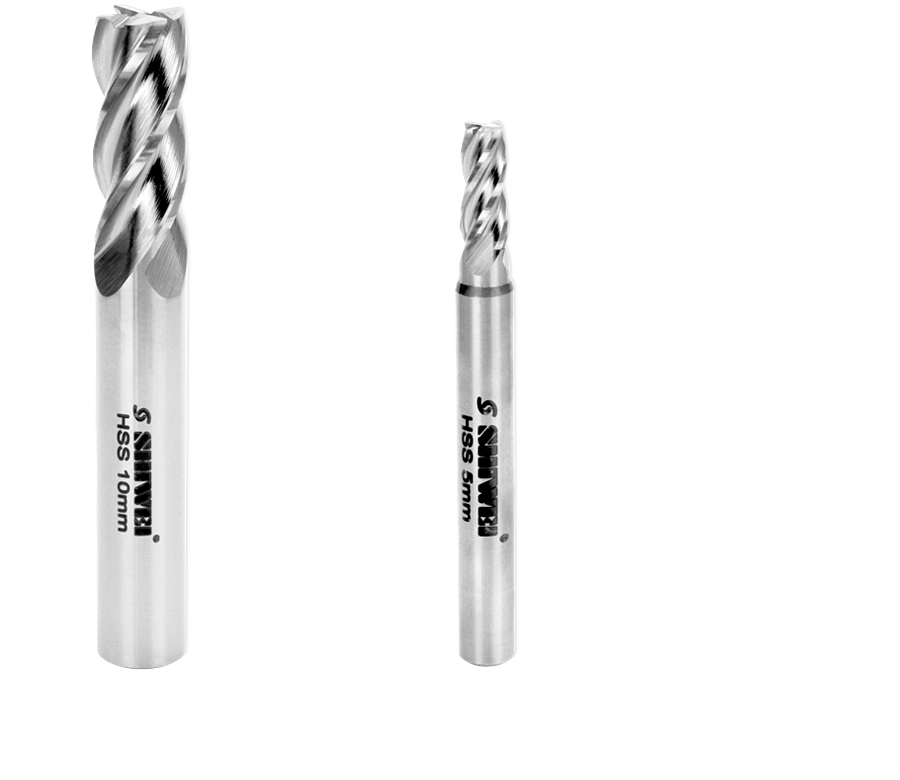

4 flutes end millS
Size Ф Total Length Shank Hexagon Flute Length Article No.
2.0mm 51mm 6mm 7mm 0702000AGT 0702000ATR 0702000ALR
3.0mm 52mm 6mm 8mm 0703000AGT 0703000ATR 0703000ALR
4.0mm 55mm 6mm 11mm 0704000AGT 0704000ATR 0704000ALR
5.0mm 57mm 6mm 13mm 0705000AGT 0705000ATR 0705000ALR
6.0mm 57mm 6mm 13mm 0706000AGT 0706000ATR 0706000ALR
7.0mm 66mm 10mm 16mm 0707000AGT 0707000ATR 0707000ALR
8.0mm 69mm 10mm 19mm 0708000AGT 0708000ATR 0708000ALR
9.0mm 69mm 10mm 69mm 0709000AGT 0709000ATR 0709000ALR
10.0mm 72mm 10mm 22mm 0710000AGT 0710000ATR 0710000ALR
11.0mm 79mm 12mm 22mm 0711000AGT 0711000ATR 0711000ALR
12.0mm 83mm 12mm 26mm 0712000AGT 0712000ATR 0712000ALR
13.0mm 83mm 12mm 26mm 0713000AGT 0713000ATR 0713000ALR
14.0mm 83mm 12mm 26mm 0714000AGT 0714000ATR 0714000ALR
15.0mm 83mm 12mm 26mm 0715000AGT 0715000ATR 0715000ALR
16.0mm 92mm 16mm 32mm 0716000AGT 0716000ATR 0716000ALR
17.0mm 92mm 16mm 32mm 0717000AGT 0717000ATR 0717000ALR
18.0mm 92mm 16mm 32mm 0718000AGT 0718000ATR 0718000ALR
20.0mm 104mm 20mm 38mm 0720000AGT 0720000ATR 0720000ALR
21.0mm 104mm 20mm 38mm 0721000AGT 0721000ATR 0721000ALR
22.0mm 104mm 20mm 38mm 0722000AGT 0722000ATR 0722000ALR
23.0mm 104mm 20mm 38mm 0723000AGT 0723000ATR 0723000ALR
24.0mm 121mm 25mm 45mm 0724000AGT 0724000ATR 0724000ALR
25.0mm 121mm 25mm 45mm 0725000AGT 0725000ATR 0725000ALR
26.0mm 121mm 25mm 45mm 0726000AGT 0726000ATR 0726000ALR
28.0mm 121mm 25mm 45mm 0728000AGT 0728000ATR 0728000ALR
30.0mm 121mm 25mm 45mm 0730000AGT 0730000ATR 0730000ALR
32.0mm 133mm 32mm 45mm 0732000AGT 0732000ATR 0732000ALR
　 ...
Please click to download PDF for more product information.
