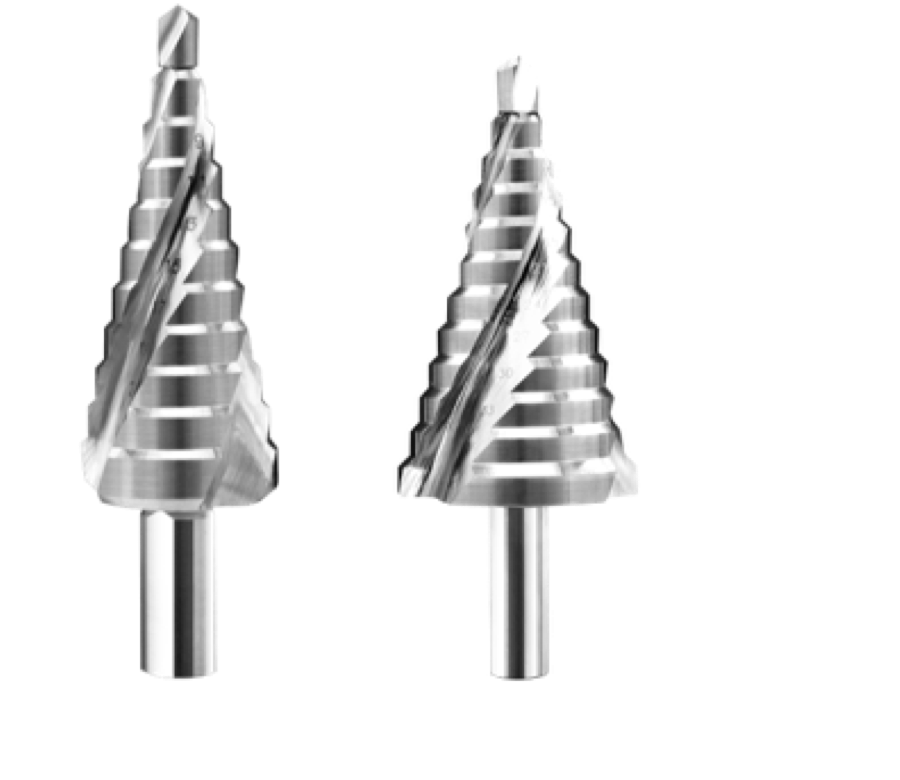

HSS / HSS-Co TRIPLE SPIRAL FLUTES WITH CHANGETABLE PILOT DRILL
Variable sizes of larger diameters can be drilled without the need for a pre-drilled hole, with a smooth multi-flute action ensuring that clean round holes are produced.
| Drilling Range(mm) | Length(mm) | Steps | Handle Ф(mm) | Article No. | ||||||||||||
 |
 |
 |
 |
|||||||||||||
 |
 |
 |
|
|
|
|
|
|
||||||||
| 5-25 | 84 | 11 | 10 | 1552500AGT | 1552500ATT | 1552500ALT | 1552500AGR | 1552500ATR | 1552500ALR | 1552500AGH | 1552500ATH | 1552500ALH | ||||
| 6-30 | 97 | 13 | 10 | 1563000AGT | 1563000ATT | 1563000ALT | 1563000AGR | 1563000ATR | 1563000ALR | 1563000AGH | 1563000ATH | 1563000ALH | ||||
| 6-38 | 104 | 12 | 10 | 1563800AGT | 1563800ATT | 1563800ALT | 1563800AGR | 1563800ATR | 1563800ALR | 1563800AGH | 1563800ATH | 1563800ALH | ||||
| 6-30.5 | 70 | 11 | 10 | 1563050AGT | 1563050ATT | 1563050ALT | 1563050AGR | 1563050ATR | 1563050ALR | 1563050AGH | 1563050ATH | 1563050ALH | ||||
| 6-37 | 102 | 12 | 10 | 1563700AGT | 1563700ATT | 1563700ALT | 1563700AGR | 1563700ATR | 1563700ALR | 1563700AGH | 1563700ATH | 1563700ALH | ||||
| 9-36 | 102 | 12 | 10 | 1593600AGT | 1593600ATT | 1593600ALT | 1593600AGR | 1593600ATR | 1593600ALR | 1593600AGH | 1593600ATH | 1593600ALH | ||||
| 10.5-40.5 | 107 | 13 | 10 | 15105405AGT | 15105405ATT | 15105405ALT | 15105405AGR | 15105405ATR | 15105405ALR | 15105405AGH | 15105405ATH | 15105405ALH | ||||
| 7-40.5 | 115 | 13 | 10 | 1574050AGT | 1574050ATT | 1574050ALT | 1574050AGR | 1574050ATR | 1574050ALR | 1574050AGH | 1574050ATH | 1574050ALH | ||||
| ... | ||||||||||||||||
Please click to download PDF for more product information.
