阶梯钻
当前位置 : 首页 > 产品中心 > 阶梯钻

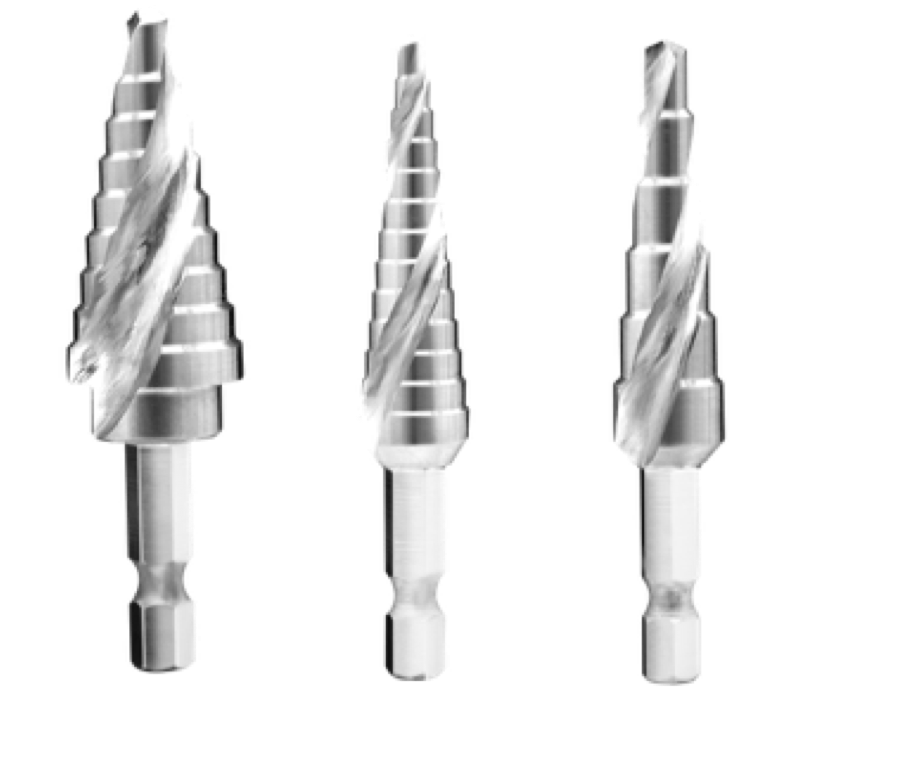

高速钢/含钴　双螺旋槽英制阶梯钻
Variable sizes of larger diameters can be drilled without the need for a pre-drilled hole, with a smooth multi-flute action ensuring that clean round holes are produced.
Drilling Range(inch) Length(inch) Steps Handle Ф(inch) Article No.
3/16-1/2 3 1/8 6 1/4 1331612AGT 1331612ATT 1331612ALT 1331612AGR 1331612ATR 1331612ALR 1331612AGH 1331612ATH 1331612ALH
1/8-1/2 3 1/8 13 1/4 1318120AGT 1318120ATT 1318120ALT 1318120AGR 1318120ATR 1318120ALR 1318120AGH 1318120ATH 1318120ALH
1/4-3/4 2 3/4 9 3/8 1314340AGT 1314340ATT 1314340ALT 1314340AGR 1314340ATR 1314340ALR 1314340AGH 1314340ATH 1314340ALH
3/16-7/8 3 12 3/8 1331678AGT 1331678ATT 1331678ALT 1331678AGR 1331678ATR 1331678ALR 1331678AGH 1331678ATH 1331678ALH
1/4-1 2 7/8 8 3/8 1314100AGT 1314100ATT 1314100ALT 1314100AGR 1314100ATR 1314100ALR 1314100AGH 1314100ATH 1314100ALH
1/4-1 3/8 2 7/8 3 3/8 1314118AGT 1314118ATT 1314118ALT 1314118AGR 1314118ATR 1314118ALR 1314118AGH 1314118ATH 1314118ALH
1/4-1 3/8 2 3/4 10 3/8 1314138AGT 1314138ATT 1314138ALT 1314138AGR 1314138ATR 1314138ALR 1314138AGH 1314138ATH 1314138ALH
1/2 2 1/2 1 3/8 1312000AGT 1312000ATT 1312000ALT 1312000AGR 1312000ATR 1312000ALR 1312000AGH 1312000ATH 1312000ALH
　 　 ...
点击这里下载PDF获取更多相关产品信息
